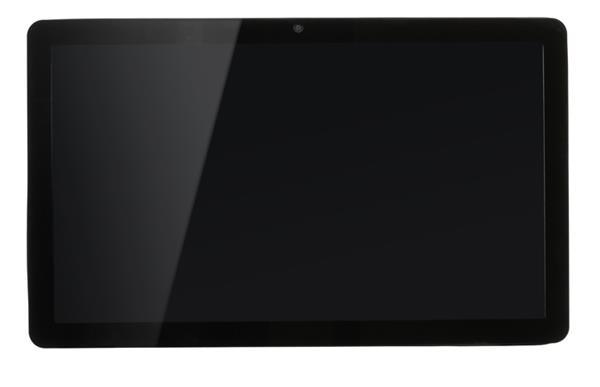

| All-in-one Interactive Touch Device eTILE 15M Value FanFree
|
|
|
| The eTILE 15M Value FanFree is a fanless 15.6” all-in-one touch device. Developed with POS in mind; this multitouch system can be integrated in various retail settings. The eTILE is very reliable and quiet because it’s fanfree and it doesn’t have any moving parts.
|
|
|
| The eTILE 15M Value FanFree includes the following featues:
|
|
|
| A fanless, silent all-in-one interactive touch display
|
| Modular RJ50 connector for RS232 connection (voltage confi gurable)
|
| Tamper resistant because of cable management, hidden keypad and port cover
|
| IP65 grade dust & waterproof front panel
|
| Storage and RAM:
|
|
|
| mSATA SSD, 32G
|
| Dual Channel, DDR3L SO-DIMM x 2, 1333 MHz, 2G x2, Max 8G
|
| Expansion:
|
|
|
| mini Card Slot x 2
|
| Side Panel I/O:
|
|
|
| Power Button x 1
|
| HDD indicator x 1
|
| Power indicator x 1
|
| System I/O:
|
|
|
| DC 19V/20V Jack x 1
|
| HDMI Out Port x 1
|
| USB 2.0 Port x 4
|
| RJ45 LAN Jack x 1
|
| PC Legacy RS232 Serial Port x 4 through RJ50
|
| Audio Set Line-Out x 1 Mic-In x 1
|
| Upgrade for Antenna Port Embedded Antenna |
